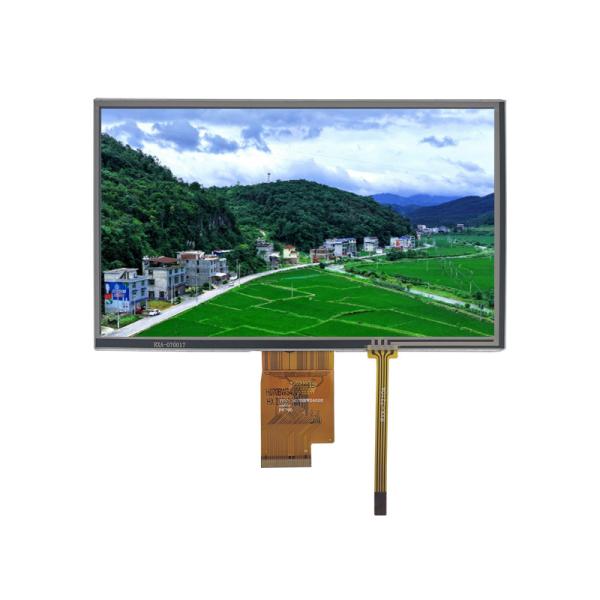

7.0 Inch LVDS 1024x600 IC GT911 HD Tft Lcd LCD Touch Screen

Brand Name : ESEN

Model Number : T070B W S40I3523 -CT24

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : No MOQ

Price : can be negotiated

Payment Terms : L/C,T/T

Supply Ability : 300K/mth

Delivery Time : 6~15 working days

Packaging Details : Cartons, Capboard, EPE, Blister Tray.

Panel Size : 7.0 inch

Number of Pixels : 1024×RGB (3) ×600

Active Area : 154.21(H)x85.92(V) mm

Pixel Pitch : 0.1506(H)×0.1432(V) mm

Outline Dimension : 164.9(W)×100(H)×2.8(D)

Number of Colors : 16.7M

Display Mode : Normally Black

LCD IC : HX8282-A02+HX8696-A01

Viewing Direction : ALL

Display Format : RGB vertical stripe

Luminance (cd/m^2) : 350(TYP.) (Customizable)

Contrast Ratio : 800(TYP.)

Surface Treatment : Anti-Glare

Interface : LVDS

Touch Structure : G+G, G+F, P+G, G+F+F

Glass Brand : AGC, Gorilla, BOE, CTC, Inolux, etc.

Backlight : White LED

Operating Temperature : -20--+70/-30--+85(℃)

Storage Temperature : -30--+80/-40--+90(℃)

Custom Service : different colors, different shapes, logo printing, through holes, transparent windows, silk printing, anti-UV ink, colorful OCA, etc.

Contact Now

7.0 Inch LVDS 1024x600 IC GT911 HD Tft Lcd LCD Touch Screen

CTP technical requirements:
1, the structure is :G+G IC:GT911 channel number :TX20 RX123, wind material sharp, no connection rate. Hua a618m Surface hardness :6H
4, the naked eye can not see the etching
5, TP warpage ≤ 0.3mm
6. The unmarked tolerance is soil 0.2mm, and the bevel C0.15±0.05mm is not noted
7, operating environment :-10~60℃,20~90%RH

Storage environment :-20~70℃,20~90%RH
All materials are ROHS compliant


Description


T070B W S40I3523 -CT24 is a HD tft lcd used in industrial equipment, with a touch panel, users can easily interact with the display through the touch panel. This HD tft lcd has completed experimental tests such as high and low temperature and anti-aging. It is used in an environment where the temperature is between -20~+70 ℃, and its service life exceeds 20K Hr.
T070B W S40I3523 -CT24 is an industrial touch LCD screen with high cost performance. It adopts the combination of lcd panel + TP. The lcd panel belongs to TN TFT and uses 24-bit Parallel RGB Interface for communication and interconnection with external devices. The TP belongs to the resistive touch surface (RTP) and supports the usb interface. There is a 7.0 inch color display area of this HD tft lcd, which can display video animations of 1024×600 pixels.

7.0 Inch LVDS 1024x600 IC GT911 HD Tft Lcd LCD Touch Screen

Our Service

(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you.


FAQ


Q1: Are you manufacturer ?
A: Yes, we are manufacturer.

Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.

Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.

Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.
